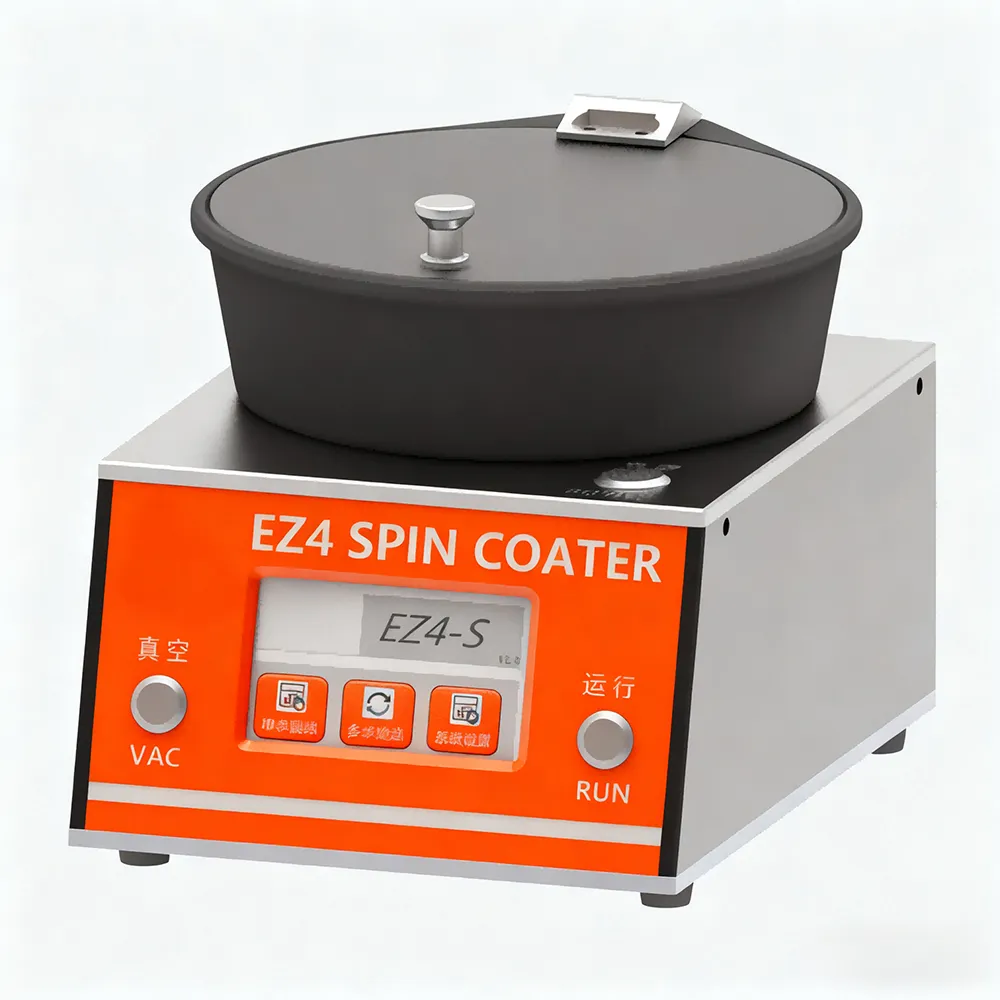

Compact Spinning Machine EZ4-S

1. Product Features :

1. Small size, suitable for operation in the glove box ;

2. Corrosion-resistant transparent cover, adjustable torque hinge ;

3. One-piece mold cavity, easy to disassemble, clean and replace ;

4. LCD text display, color mask buttons, simple and easy to use ;

5. The acceleration and deceleration speed can be controlled and adjusted, and multi-step program operation control can be set ;

6. Brushless DC motor, maximum recommended spin coating size: 4-inch round substrate ;

7. Aluminum alloy housing (EZ4-S), corrosion-resistant PP housing optional (EZ4-S-PP) ;

2. Product parameters :

1. Speed range: 100-9999rpm ;

2. Speed resolution: 1rpm ;

3. Acceleration adjustable range: 100-9999rpm/s ;

4. Maximum single step length: 3000s ;

5. Time resolution: 1s ;

6. Wide voltage application: AC100-230V input, Chinese and English optional ;

7. Single-step or multi-step operation is optional, and up to 5 groups of 5-step programs can be set ;

8. Standard vacuum carrier plates with three diameters: 10mm, 25mm and 2 inches.
